Site Licence:
£99.00 + VAT
To enquire about a single licence
email: info@tyncan.com
The newest member of the iLOG family makes the famous features of the Insight iLOG brand available to the BBC micro:bit, turning it into a powerful data-logger.
Sensors:
The micro:bit contains sensors for acceleration, magnetic field, temperature and light. iLOG can show data from all these as well as from external sensors connected to the input pins.
![MenuActivities.JPG](https://static.wixstatic.com/media/ae2dc7_c610193734b147f78c86d246c512088c~mv2.jpg/v1/fill/w_264,h_320,al_c,lg_1,q_80,enc_auto/MenuActivities_JPG.jpg)
![Screen.JPG](https://static.wixstatic.com/media/ae2dc7_07f08a6440b14f6897ab26bffa0fe474~mv2.jpg/v1/fill/w_100,h_78,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/Screen_JPG.jpg)
Logging:
iLOG collects data from the micro:bit via USB. There are several collection modes providing real-time logging (as it happens), remote logging (download data from the micro:bit’s memory), snapshot logging, oscilloscope and timing measurements.

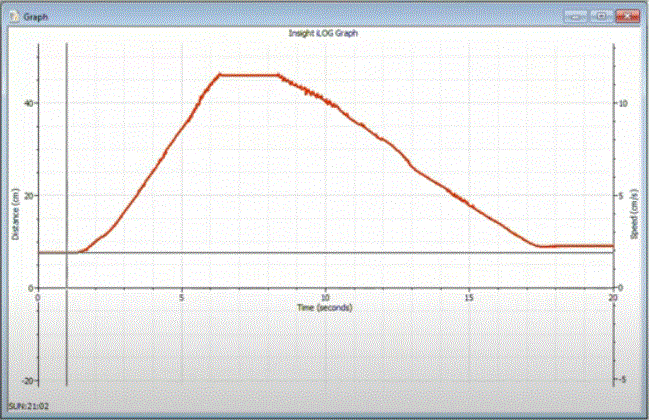

Display:
Data shows in a choice of windows simultaneously; Graph, Bar chart, Table and as large digits. Graph axes are easily scaled by stretch,squeeze, scroll and zoom actions.
![Display.GIF](https://static.wixstatic.com/media/ae2dc7_136a60dfd89b4406a93525e100517705~mv2.gif)
![RateOfChange.GIF](https://static.wixstatic.com/media/ae2dc7_3ac5f3e640c0442ca071fa79f56af151~mv2.gif)

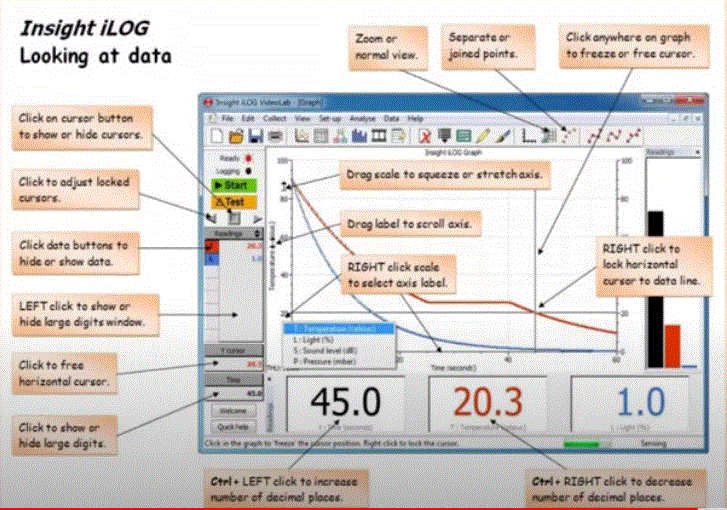

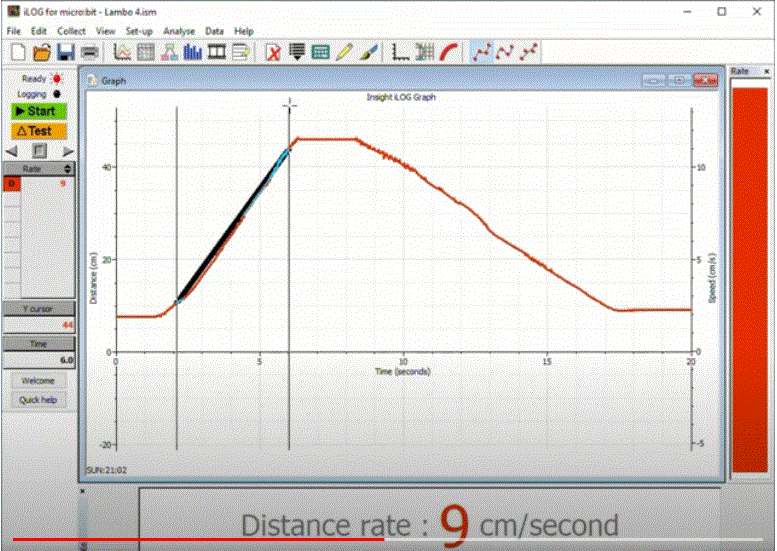

Analysis:
Cursor tools for obtaining values from the graph: Readings, Change, Average, Gradient, Rate of change, Ratio, Area, Time interval. Curve fitting tools. Calculation tools to generate customised functions.

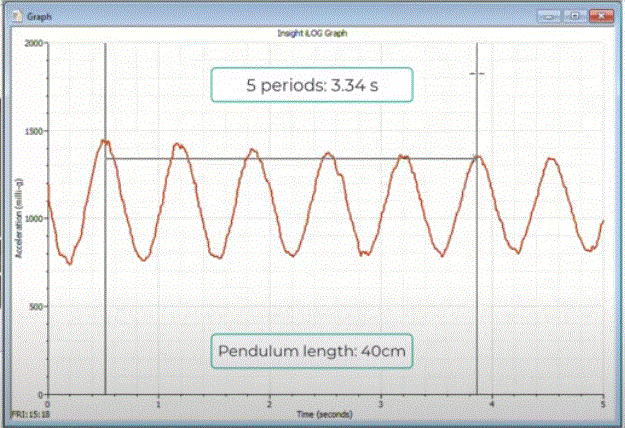

Timing:
Precision timing facilities for measurements of velocity, acceleration, momentum and energy.
![timing.GIF](https://static.wixstatic.com/media/ae2dc7_e850213a7b9d477b9afcf638f6e25a4d~mv2.gif)
![Logging.GIF](https://static.wixstatic.com/media/ae2dc7_82bcc35ab5cf401fb876a40fb527c955~mv2.gif)
Data files:
Saving and loading data in a variety of formats including set-up files saving customised screens.
Modelling:
The unique Insight modelling system for generating data from customised variables and formulae.
![tools.GIF](https://static.wixstatic.com/media/ae2dc7_234d65fb084a45b89fa9a2a214114b55~mv2.gif)
Resources:
Scripted experiments and sample data files are available.
